CBaseSocket Class Reference

Base socket class implements low level Berkley socket functionality. More...

#include <CBaseSocket.h>

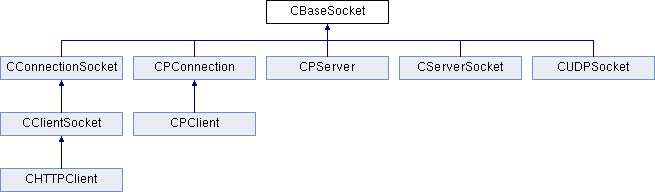

Inheritance diagram for CBaseSocket:

List of all members.

Public Member Functions
	CBaseSocket ()
	constructor
virtual	~CBaseSocket ()
virtual BOOL	Create (int af, int type, int protocol, UINT nPort=0, LPCSTR lpAddr=NULL, BOOL bReuse=FALSE, BOOL bBind=TRUE, int iLinger=-1, BOOL bNoTcpDelay=FALSE)
	methods
virtual BOOL	SetBlockingMode (BOOL bBlock=TRUE)
	Make this a blocking socket.
virtual void	CloseSocket ()
	Close socket.
virtual struct sockaddr_in *	GetSocketName ()
	Return a socket address structure with info currently bound to the socket.
virtual const char *	GetSocketAddressAsString ()
	Return the socket address as a string.
virtual int	GetCreateError ()
	Return the last create error.
virtual int	GetSocketType ()
	Get socket type.
Protected Member Functions
virtual void	UnprotectedCloseSocket ()
	Unprotected close socket - called by CloseSocket.
Protected Attributes
SOCKET	sSocket
CXPlatCriticalSection	cCriticalSocket
BOOL	bBlocking
struct sockaddr_in	sTAddr
int	iCreateError
string	sUnixPath
int	iAF

---

Detailed Description

Base socket class implements low level Berkley socket functionality.

Definition at line 39 of file CBaseSocket.h.

---

Constructor & Destructor Documentation

CBaseSocket::CBaseSocket

(

)

constructor

Definition at line 32 of file CBaseSocket.cpp.

CBaseSocket::~CBaseSocket

(

)

[virtual]

Definition at line 39 of file CBaseSocket.cpp.

---

Member Function Documentation

void CBaseSocket::CloseSocket

(

)

[virtual]

Close socket.

Reimplemented in CUDPSocket.

Definition at line 207 of file CBaseSocket.cpp.

BOOL CBaseSocket::Create	(	int	af,
		int	type,
		int	protocol,
		UINT	nPort = 0,
		LPCSTR	lpAddr = NULL,
		BOOL	bReuse = FALSE,
		BOOL	bBind = TRUE,
		int	iLinger = -1,
		BOOL	bNoTcpDelay = FALSE
	)		[virtual]

methods

Parameters:

type	Address family. Only tested with AF_INET.
protocol	Stream or datagram (SOCK_STREAM or SOCK_DRAM)
nPort	Usually 0 for inet sockets
lpAddr	Port
bReuse	Address. For inet in the standard xxx.xxx.xxx.xxx format, for AF_UNIX the path
bBind	Allow reuse of this socket
iLinger	Default to bind the socket. Not needed if this is the result of an ::accept
bNoTcpDelay	-1 = system default, 0 = DONT_LINGER, else the timeout

Definition at line 52 of file CBaseSocket.cpp.

int CBaseSocket::GetCreateError

(

)

[virtual]

Return the last create error.

Definition at line 167 of file CBaseSocket.cpp.

const char * CBaseSocket::GetSocketAddressAsString

(

)

[virtual]

Return the socket address as a string.

Definition at line 271 of file CBaseSocket.cpp.

struct sockaddr_in * CBaseSocket::GetSocketName

(

)

[read, virtual]

Return a socket address structure with info currently bound to the socket.

Definition at line 247 of file CBaseSocket.cpp.

int CBaseSocket::GetSocketType

(

)

[virtual]

Get socket type.

Definition at line 175 of file CBaseSocket.cpp.

BOOL CBaseSocket::SetBlockingMode

(

BOOL

bBlock = TRUE

)

[virtual]

Make this a blocking socket.

FALSE = system default, TRUE = disable Nagle algorithm and send partial data

Definition at line 183 of file CBaseSocket.cpp.

void CBaseSocket::UnprotectedCloseSocket

(

)

[protected, virtual]

Unprotected close socket - called by CloseSocket.

Reimplemented in CPConnection.

Definition at line 221 of file CBaseSocket.cpp.

---

Member Data Documentation

BOOL CBaseSocket::bBlocking [protected]

Definition at line 76 of file CBaseSocket.h.

CXPlatCriticalSection CBaseSocket::cCriticalSocket [protected]

Definition at line 75 of file CBaseSocket.h.

int CBaseSocket::iAF [protected]

Definition at line 80 of file CBaseSocket.h.

int CBaseSocket::iCreateError [protected]

Definition at line 78 of file CBaseSocket.h.

SOCKET CBaseSocket::sSocket [protected]

Definition at line 74 of file CBaseSocket.h.

struct sockaddr_in CBaseSocket::sTAddr [protected]

Definition at line 77 of file CBaseSocket.h.

string CBaseSocket::sUnixPath [protected]

Definition at line 79 of file CBaseSocket.h.

---

The documentation for this class was generated from the following files:

• CBaseSocket.h
• CBaseSocket.cpp
